CUNO-Style SS Filter Housing for Industrial Liquid Filtration

CUNO-style SS304/316L single cartridge housing for industrial liquid filtration. Supports 10″–40″ cartridges, DOE/222/226 connections, threaded ports and customizable configurations for OEM projects.

Запрос
Поделитесь с друзьями
Категория: Метки: , ,

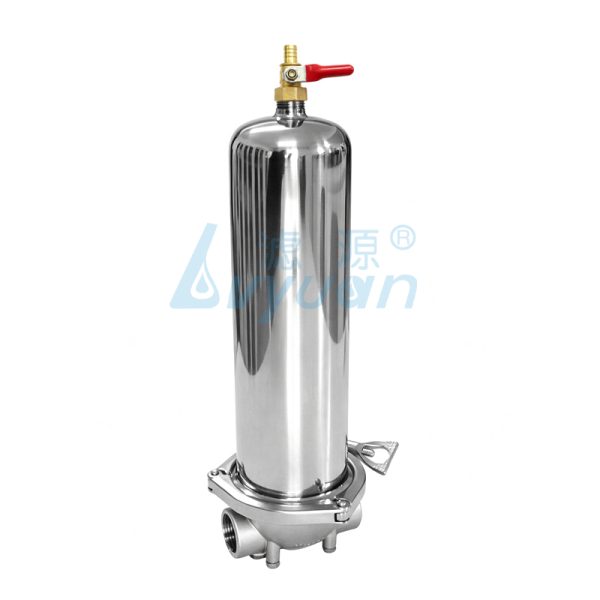

This CUNO-style stainless steel filter housing is designed for industrial liquid filtration using a single replaceable cartridge. Available in SS304 or SS316L, it supports 10″, 20″, 30″ and 40″ cartridges with DOE, 222 or 226 connections, threaded inlet/outlet ports and a sanitary clamp closure.

With filtration ratings from 0.1–200 μm depending on the selected cartridge, flow rates up to 5–10 m³/h, operating pressure up to 10 bar and temperatures up to 120°C, it provides flexible industrial filtration solutions. Custom material, cartridge length, connection size, seal and configuration options can be supplied for OEM, project and bulk procurement requirements.

CUNO-Style SS Filter Housing (7)CUNO-Style SS Filter Housing (1)

Тип

Single Cartridge Filter Housing
Материал

SS304, SS316L
Конфигурация картриджа

1 Cartridge; DOE, 222 or 226
Длина картриджа

10", 20", 30", 40"
Степень фильтрации

0.1–200 μm
Скорость потока

Up to 5–10 m³/h
Operating Limits

Max. 10 bar (150 psi); up to 120°C
Соединение

1/2", 3/4", 1", 1.5" Threaded Ports; Sanitary Clamp Closure
Обработка поверхности

Surface treatment: Polishing, electropolishing
